12V DC 単動油圧ユニット 6クォートタンク リモコン付き HPU-PR-12VDC-SA-06 ダンプトレーラーシザーリフトテーブル用

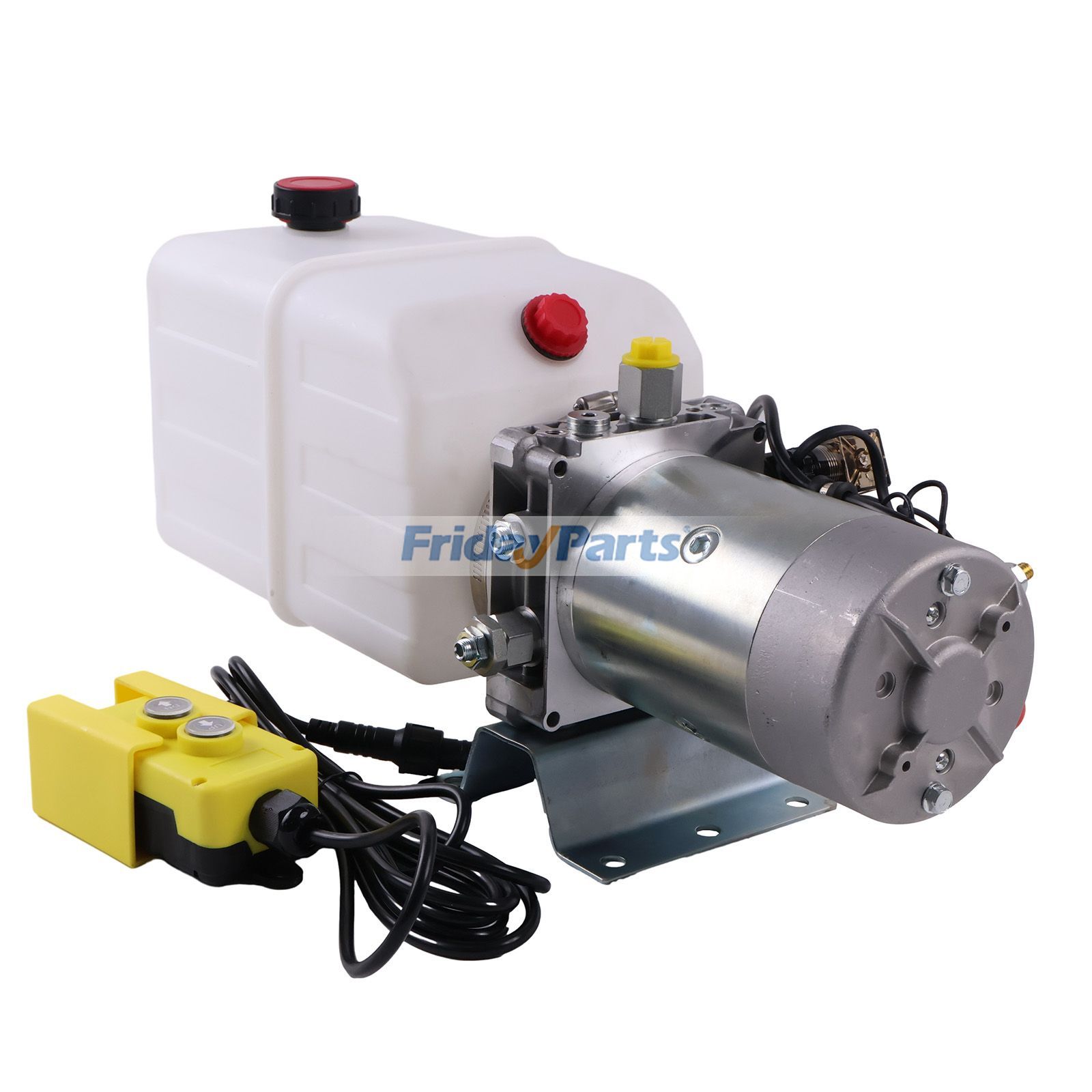

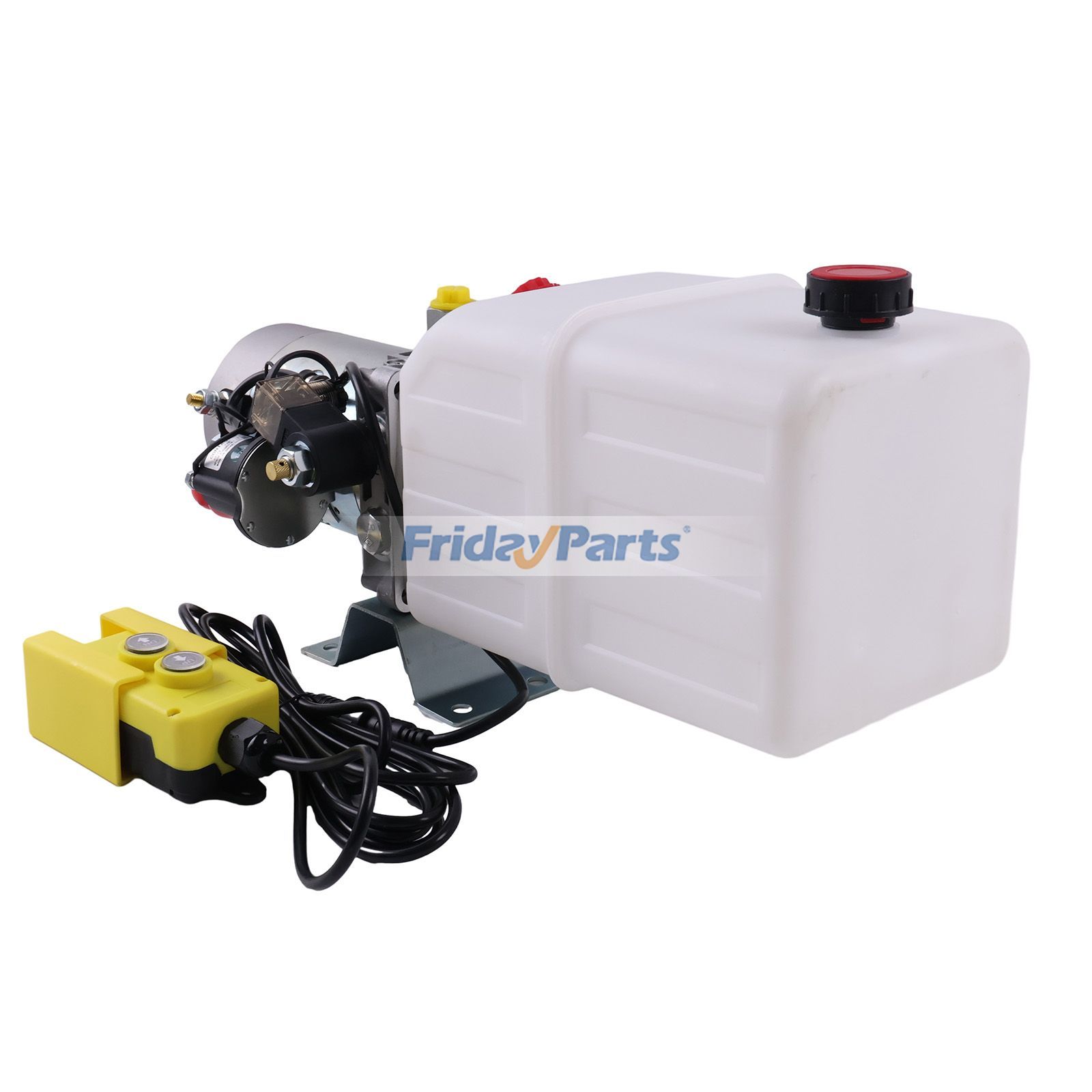

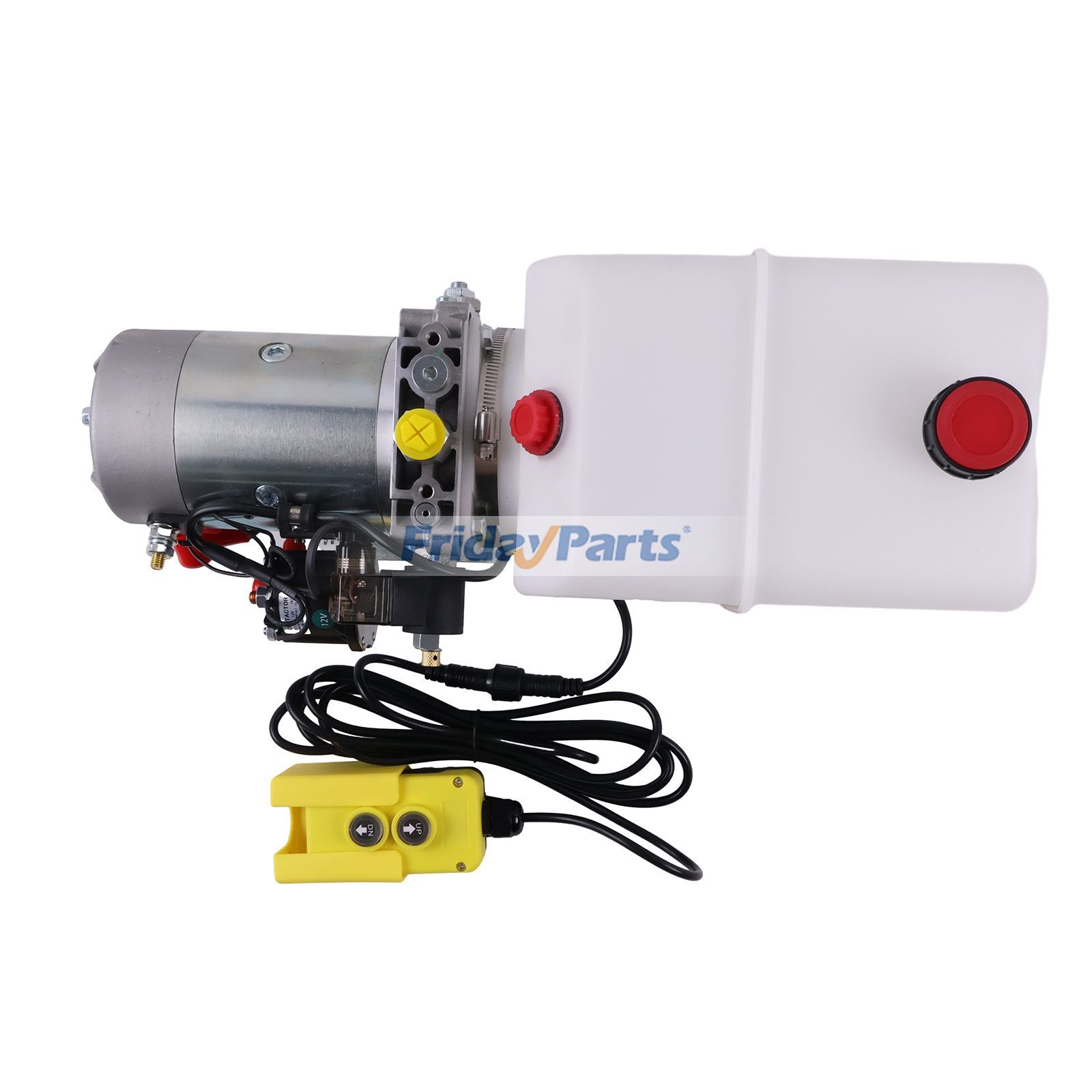

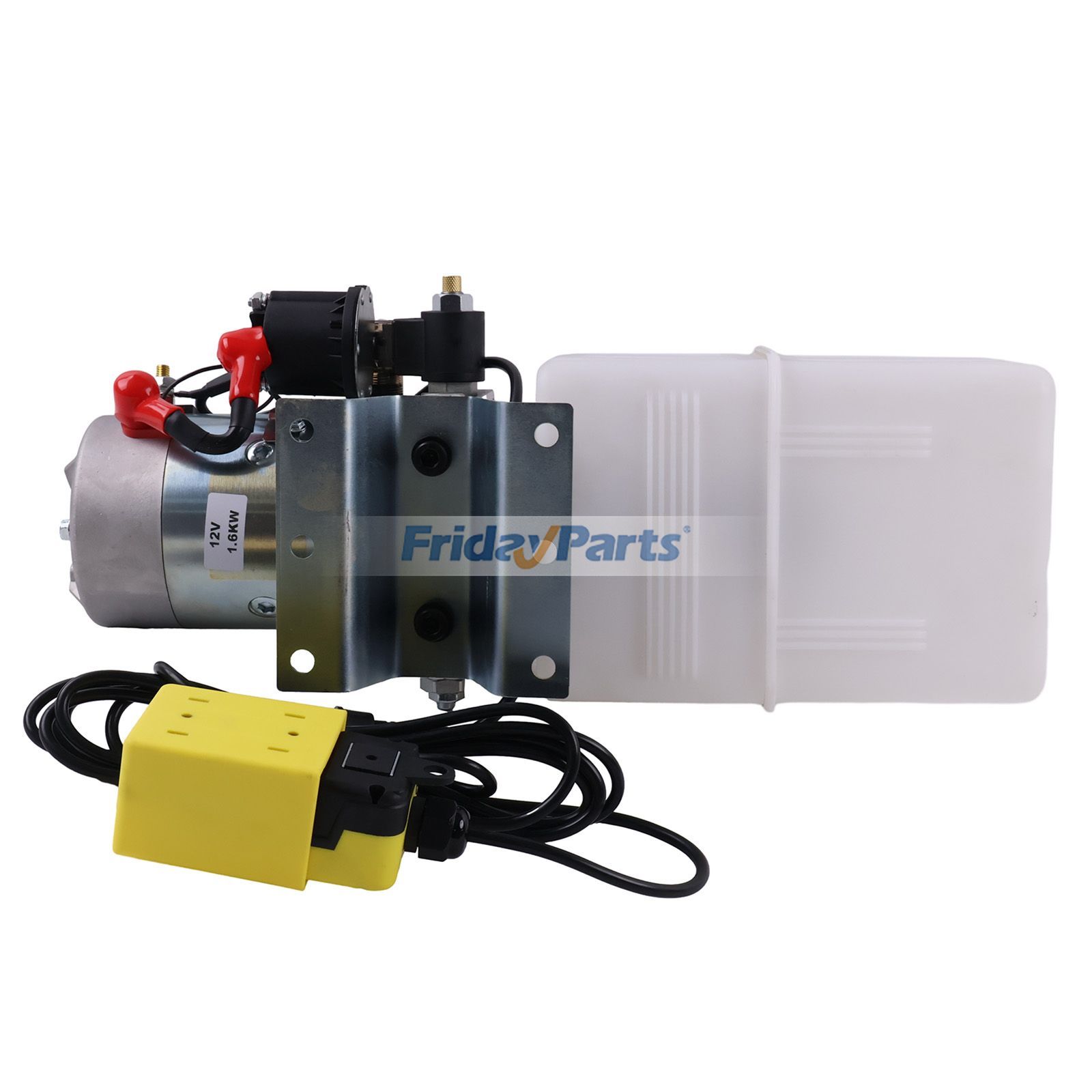

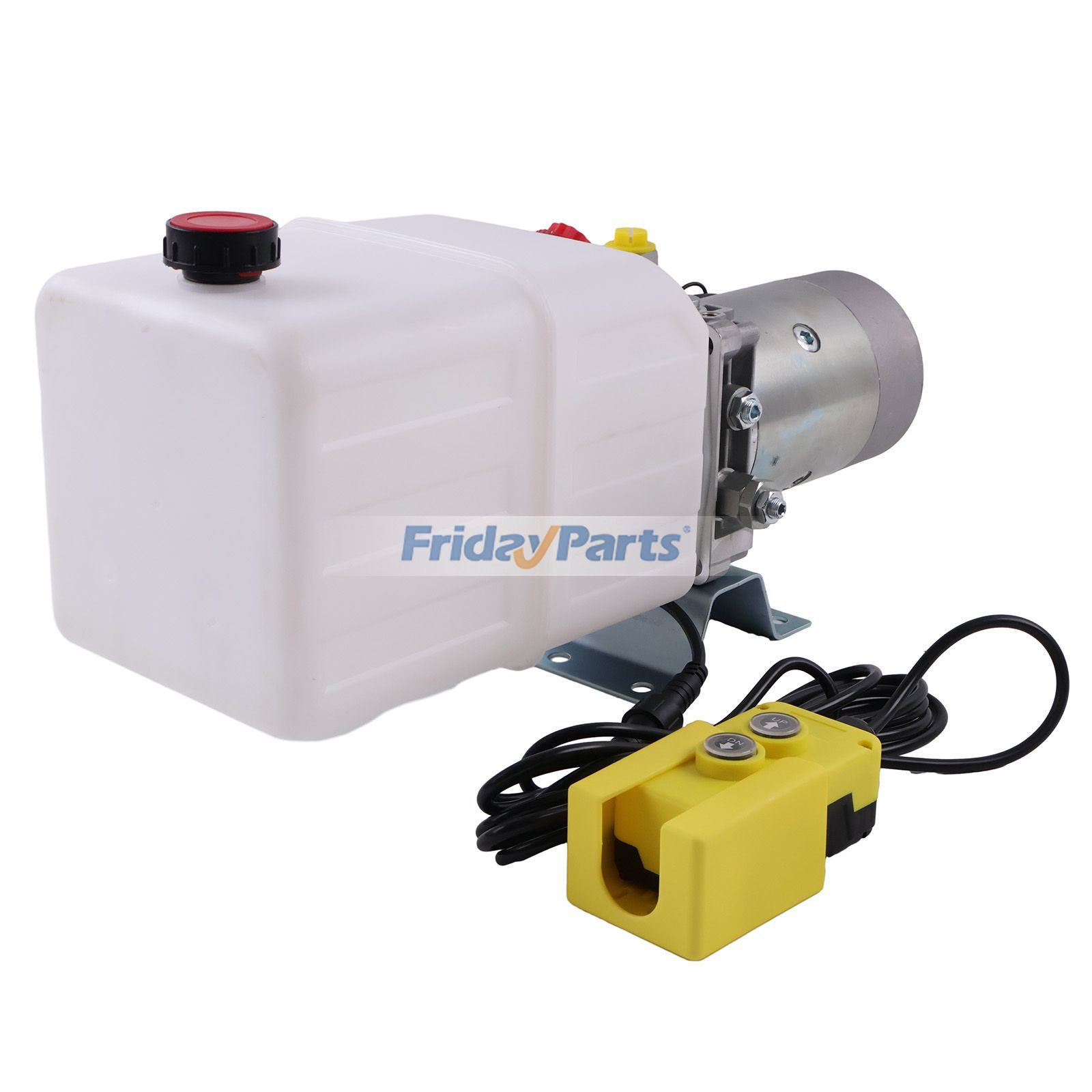

12V DC Single Acting Hydraulic Power Unit 6 Quart Tank With Remote Control HPU-PR-12VDC-SA-06 for Dump Trailer Scissor Lift Table

Replacement Part Number: HPU-PR-12VDC-SA-06, HPUPR12VDCSA06

Specification:
Power: 12 VDC
Motor: 4.5" 12 VDC
Reservoir: Plastic tank 6 quarts
Working pressure: 2500 PSI
GPM @2500 PSI: 0.9
Action: Single Acting - Power Up, Gravity Down
Relief Valve: 3000 PSI
Ports: SAE 8
Remote: Included, 8 ft long
Mounting: Flange with 4 holes through

This single acting hydraulic power unit is equipped with a durable 6-quart plastic reservoir, designed for reliable performance in a wide range of lifting applications. The unit features a factory-set pressure relief valve at 3000 PSI, with easy adjustability to meet different system requirements.

Ideal for Power Up, Gravity Down operations, this unit comes with a convenient wired remote for effortless control. The 4.5" motor runs smoothly on a 12V DC battery, delivering a flow rate of 0.9 GPM at 2500 PSI for efficient performance.

Key Features:
12V DC Single Acting Hydraulic Power Unit
6-Quart Heavy-Duty Plastic Reservoir
Adjustable Pressure Relief Valve (Factory Set at 3000 PSI)
Power Up, Gravity Down Application
Includes Wired Remote Control for Easy Operation
4.5" Motor, Flow Rate: 0.9 GPM @ 2500 PSI
Reliable, Compact Design Ideal for Dump Trailers, Lift Tables, and More

Applications:
Fit For Dump Trailers, Scissor Lifts, Lift Tables
