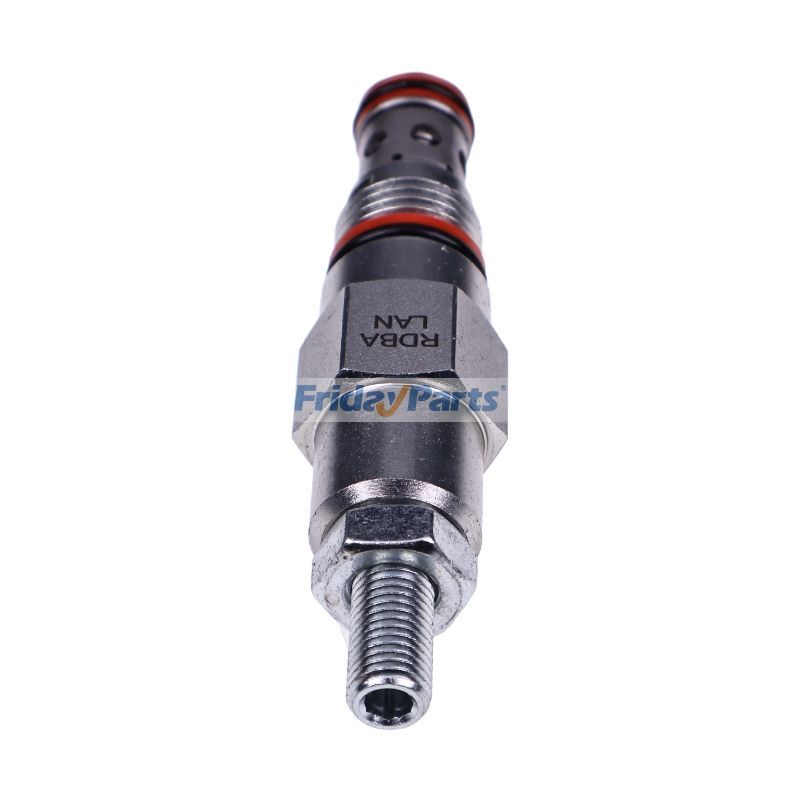

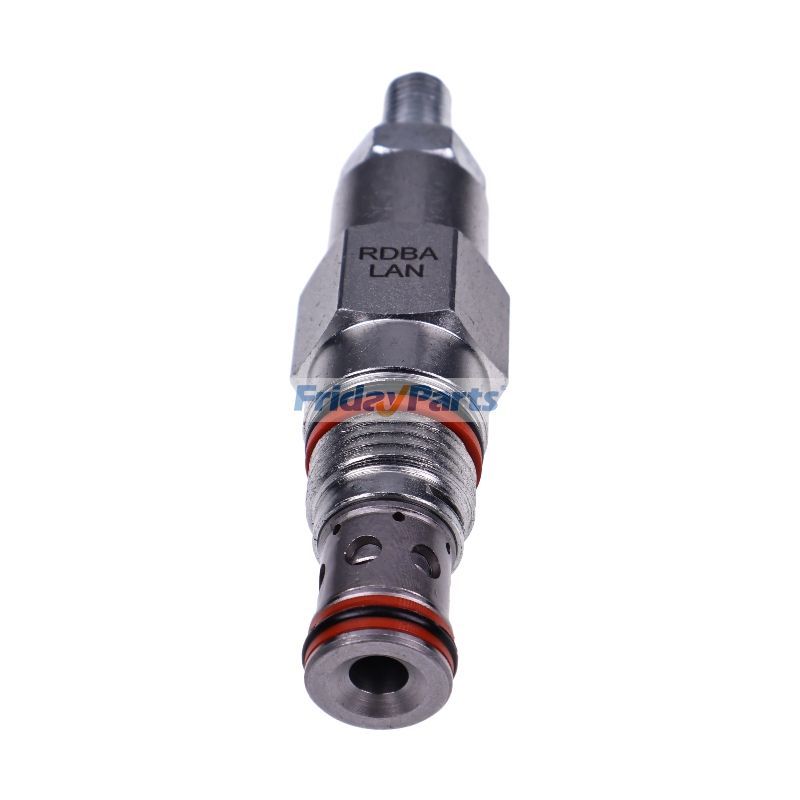

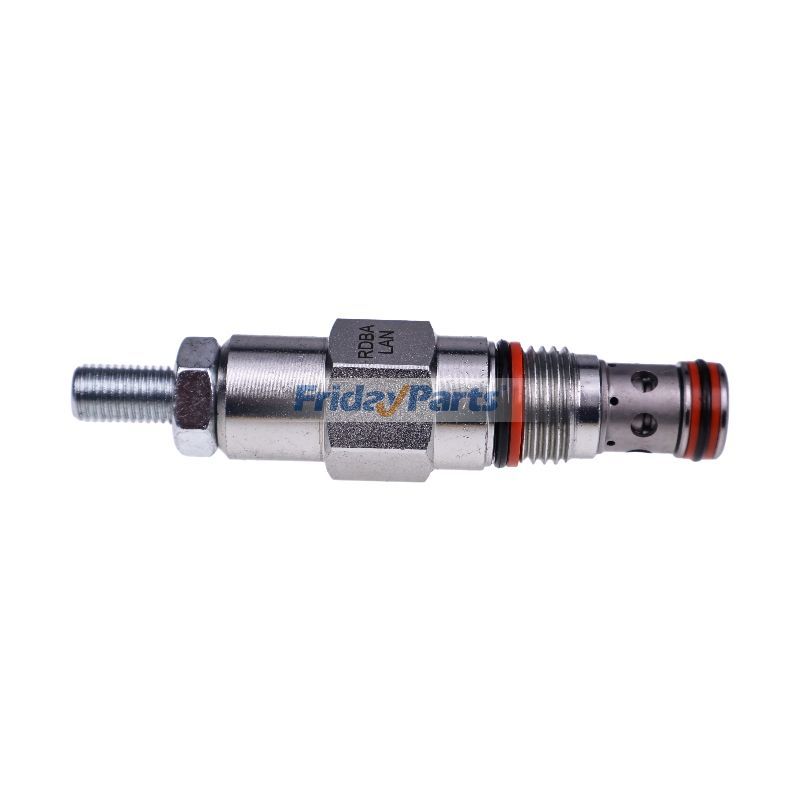

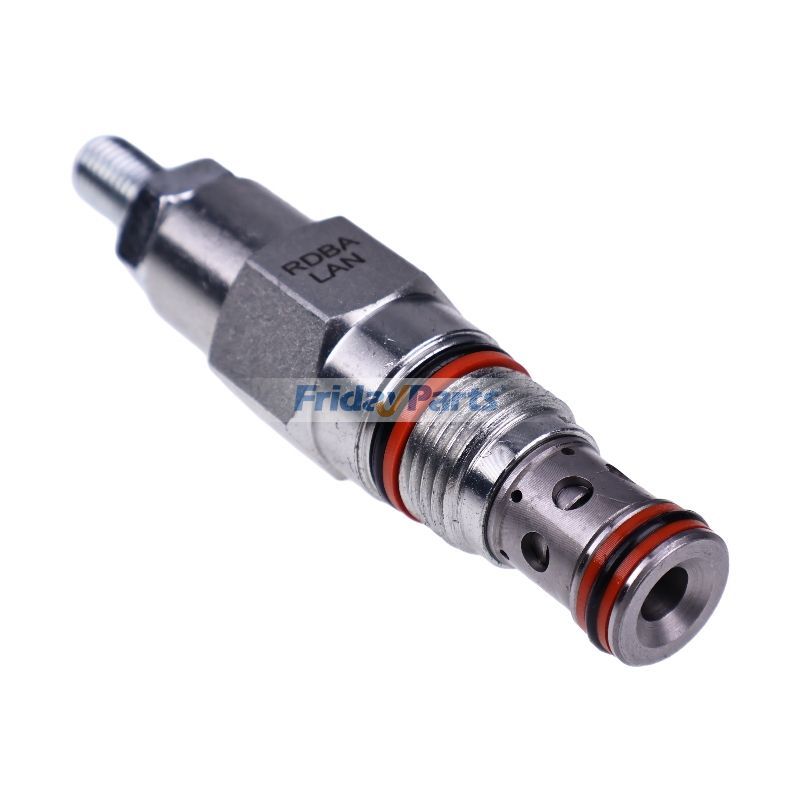

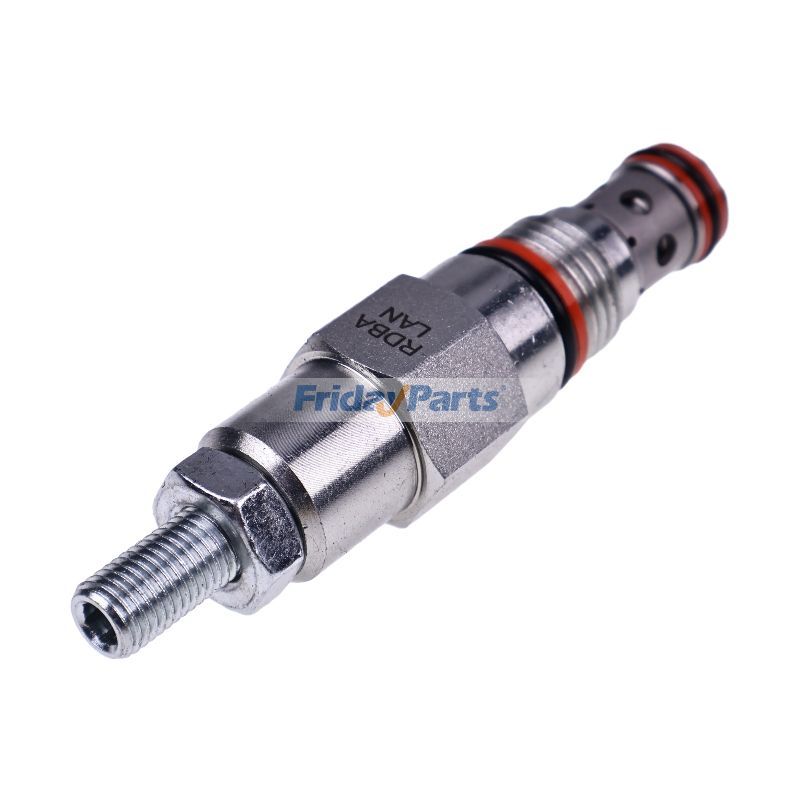

Aftermarket Sun Hydraulics RDBA-LAN Safety Relief Valve

Aftermarket Sun Hydraulics RDBA-LAN Safety Relief Valve

Replace Part Number:
RDBA-LAN, RDBALAN

Specification:
Cavity: T-162A
Capacity: 12 gpm
Maximum Operating Pressure: 5000 psi
Factory Pressure Settings Established at: 4 gpm
Maximum Valve Leakage at Reseat: 10 drops/min.
Response Time - Typical: 2 ms
Reseat: >85% of crack setting
Adjustment - No. of CW Turns from Min. to Max. setting: 6
Valve Hex Size: 3/4 in.
Valve Installation Torque: 20 - 25 lbf ft
Adjustment Screw Internal Hex Size: 5/32 in.
Locknut Hex Size: 1/2 in.
Locknut Torque: 80 - 90 lbf in.
